Capabilities

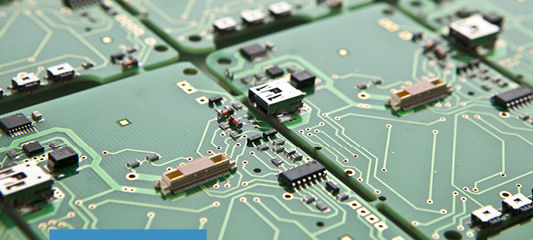

PCB Assembly

Benefiting from their upward looking camera systems the HSP / GSM lines can place BGA, TQFQ and PLCC devices with ultimate ease. With the 2 fully integrated lines working to full capacity we have a combined figure of 40 million component placements per month.

Operating in a totally controlled and monitored ESD environment we can place onto single or double sided pcb's using either the paste or glue techniques.

Using Predictive software to fine tune the initial assemblies during the reflow process, we can individually modify the reflow profile to ensure maximum yields and joint integrity.

Manual Assembly

6 Individual tracked lines can be configured and manned to provide flexible Through Hole Assembly solutions. Our skilled operators will build each assembly from bare board to final assembly.

Auto Insertion

Both Axial and Radial volume Through-Hole assemblies can be handled on our Universal equipment. Machine programming and component sequences can be generated in house. Where the bare PCB ( or panel ) shape allows, SKN can utilise adjustable tooling plates on all our insertion machines. This has the benefit of reducing initial costs for our customers.

Box, Panel & Cabinet Build

SKN are experienced in and can provide the following unit or sub assembly services.

• Chassis / sub unit assembly.
• Full unit assembly.
• Cable and harness assemblies.
• Functional and ATE testing.
• Product Configuration.
• Medium to High volume unit build
